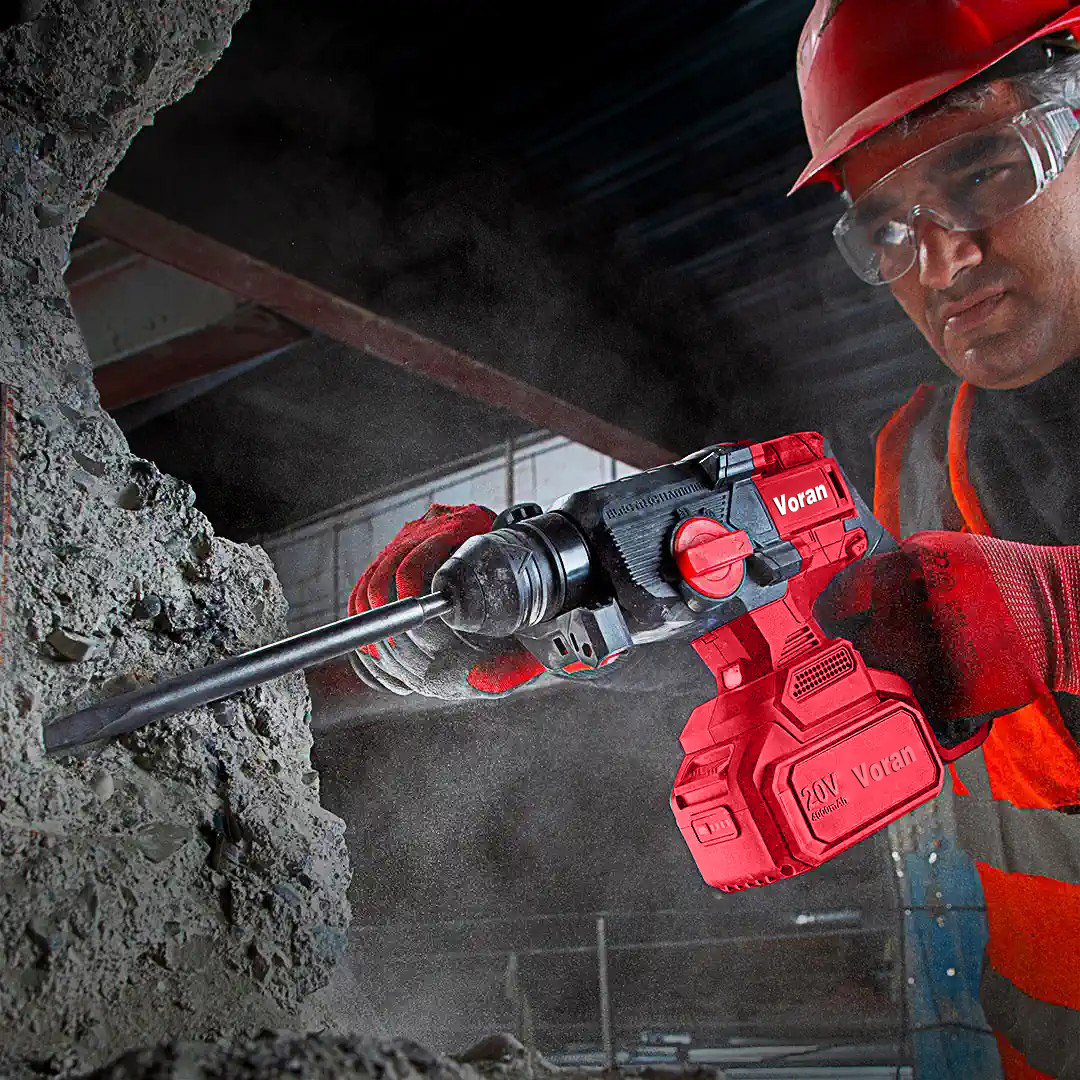

20V Brushless Cordless Rotary Hammer (Model : 8678)

Features

• Maintenance-Free Brushless 20V DC Motor

  Eliminates carbon brush wear for cooler, highly efficient operation. Offers up to 1,400 RPM no-load speed and 4,800 BPM impact rate, making concrete drilling effortless and fast.

• 2.5 Joules Impact Energy & 4-in-1 Mode Selector

  Features 4 versatile operating modes: Drilling, Hammer Drilling, Chiseling, and Chisel Alignment (allowing bit adjustment to optimum working angles for chipping).

• Torque Limiting Safety Clutch

  Automatically disengages gear drive if the drill bit binds in rebar or hard concrete, preventing dangerous high-torque kickback reactions and protecting the motor.

• Double-Insulated PA6-GF30 Body Construction

  Built with high-strength glass-fiber reinforced nylon (PA6-GF30) body and double insulation design (insulated rotor and stator paper), providing maximum heat resistance and operator electrical safety.

• Optimized Shaft Ventilation & Anti-Vibration Design

  Features advanced airflow design to dissipate motor and gear heat effectively, combined with a 360-degree anti-vibration auxiliary handle to minimize user fatigue during prolonged use.

• Smart Cell Protection 4.0Ah Battery System

  Includes two 20V 4.0Ah battery packs with built-in electronic protection against overload, over-discharge, and overheating.

Specification

Recommended Applications

• Concrete & Masonry Anchoring: High-speed precision drilling of anchor and mounting holes in solid concrete, stone, and brickwork up to 22mm diameter.

• Tile Scaling & Light Demolition: Removing ceramic tiles, chipping away excess plaster, mortar, and creating wiring channels.

• Commercial Utility Setup: Ideal for electric conduit, cable tray, HVAC bracket, and plumbing pipe installations.

• General Construction & Renovation: Reliable cordless solution for contractors requiring heavy impact power without cord restrictions.

OEM Service

We deliver fully customized OEM/ODM power tool solutions for global hardware brands, trade importers, and tool distributors:

• Brand & Logo Personalization: Custom laser engraving, pad printing, or molded logo badges on tool body, battery packs, and BMC case.

• Custom Plastic Housing Color: Full custom housing plastic injection using your corporate Pantone color palette.

• Package Customization: Customized blow-molded carrying case (BMC), color gift sleeve, shipping cartons, and localized instruction manuals.

• Battery & Power Configurations: Selectable battery pack capacities (2.0Ah, 4.0Ah, 5.0Ah) and region-specific charger plug standards (EU, US, UK, AU).

• Global Safety Compliance: Certified under CE, GS, RoHS, and EMC standards for seamless market clearance worldwide.

FAQ

Q1: What is included in the standard 8678 kit?

A: The complete 8678 kit includes: 1× 20V Cordless Brushless Rotary Hammer, 2× 20V 4.0Ah Lithium-ion Battery Packs, 1× Fast Charger, 1× 360° Auxiliary Handle, 1× Guide Ruler (Depth Gauge), and 1× Heavy-Duty BMC Case.

Q2: What is the maximum drilling diameter in concrete?

A: The maximum recommended drilling capacity in concrete is 22mm using standard SDS-Plus drill bits.

Q3: How heavy is this tool with the battery installed?

A: The unit weighs approximately 2.71 kg with one 4.0Ah battery pack installed, balancing solid impact performance with manageable weight.

Q4: What safety protections are built into this hammer drill?

A: It features a mechanical torque-limiting safety clutch, double-insulated electrical body, and intelligent battery protection against overload, over-discharge, and overheating.

Q5: What is the Minimum Order Quantity (MOQ) for custom OEM branding?

A: MOQ varies depending on the level of customization requested (logo application, custom plastic body colors, or customized packaging artwork). Contact our sales team for detailed OEM quotes and specifications.
